Ground sockets 80mm x 80mm with integrated lid for tennis posts

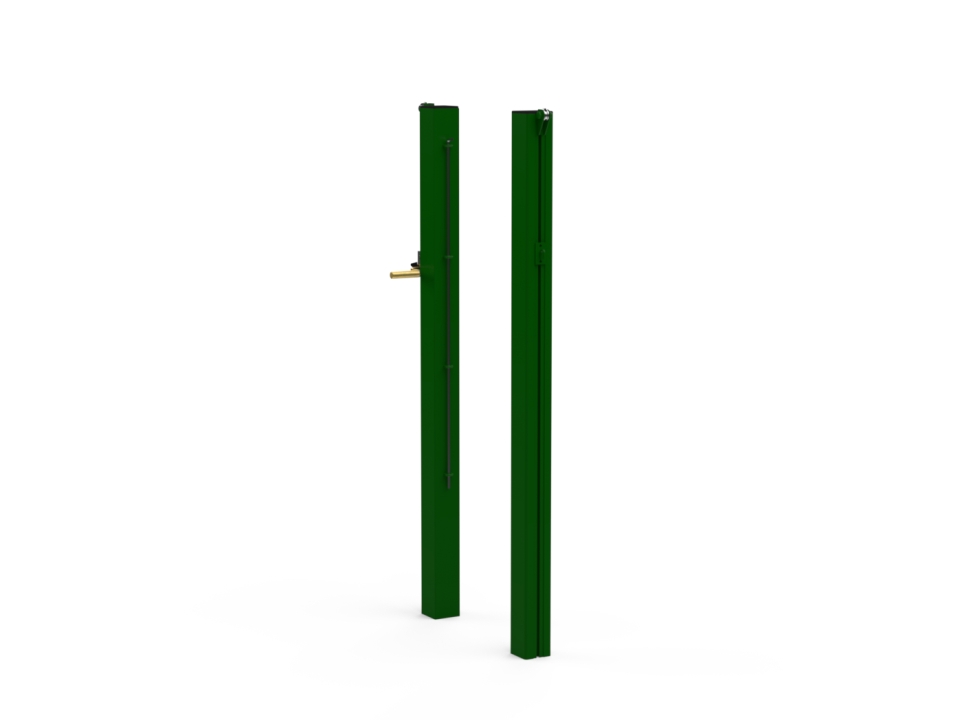

Aluminium sockets for socketed tennis posts 80mm x 80mm square cross-section. The integrated lids are ideal for use in a sports hall.


Cross section typeSquare
Cross section dimension87mm x 87mm


These ground sockets are made out of aluminium.
Designed for 80mm x 80mm square cross-section tennis posts.

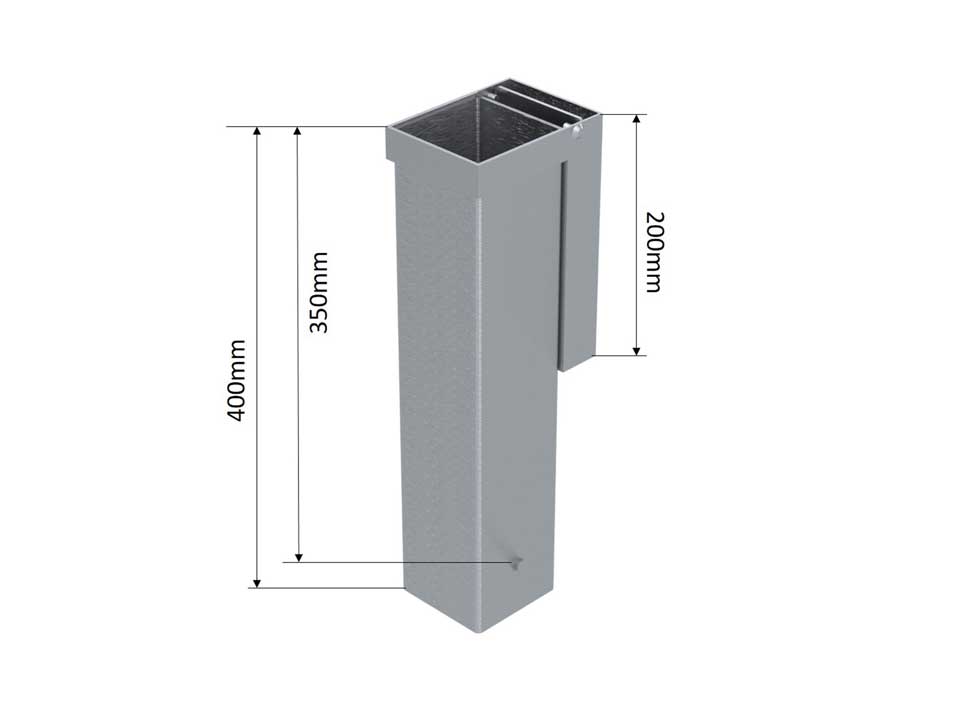

These sockets have a total depth of 400mm and a usable depth of 350mm.

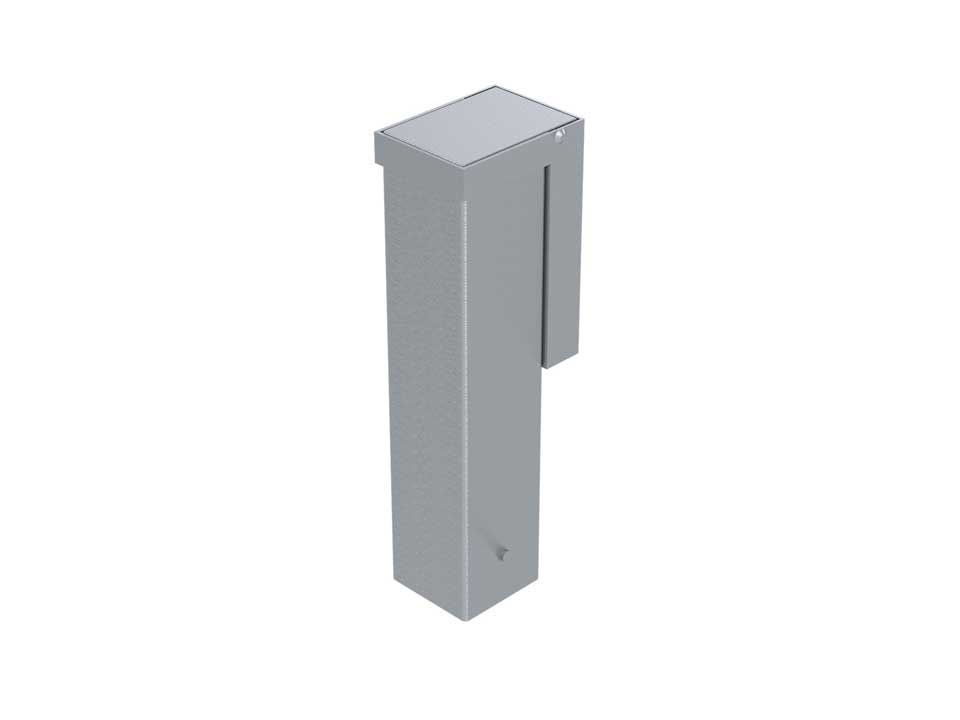

The protection lid is directly fastened to the sockets in order to prevent loss and cover the structure when it is not in use.
The socket flanges are positioned at floor lever, which enables the lids to be flush with the ground, thus not sticking out, ideal for a sports hall.

Smiley face

Smiley face

Smiley face

Special socket design to let sand
and grit pass through, without blocking post tubes
Cap-slot with added surfacing up to
12mm thick

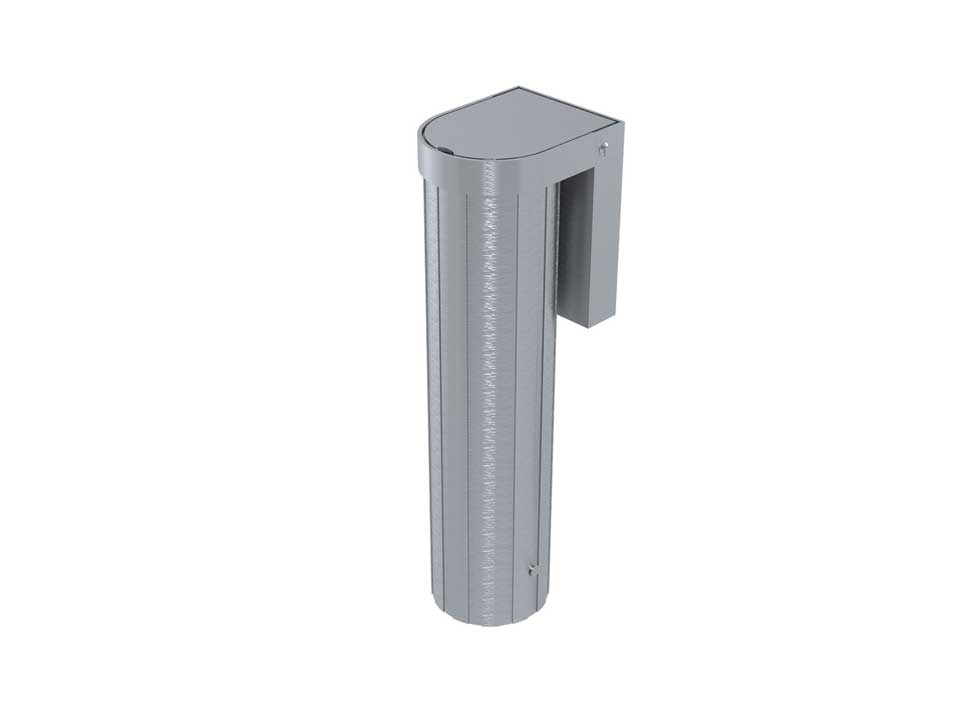

Integrated caps are fixed to the socket,
preventing loss or slipping hazards
