S12597

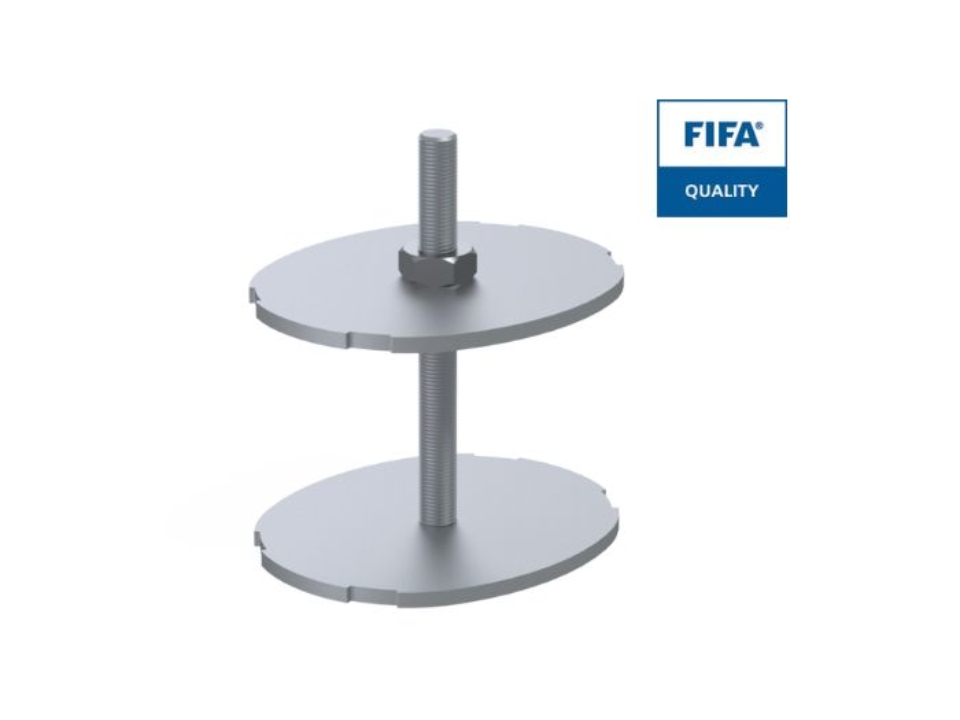

Height regulator for Ø101.6mm socket
Height regulator for Ø 102mm socket. Special height regulator design to allows adjusting the effective depth and compensate possible sag from the sockets.
button.bt_loginAccess
label.lb_specifications
| Material | Galvanised steel |
| Cross-section type | Round |
| Height | 130mm |
| Note | For Ø101.6mm sockets |
| Color | Gold plated |
| Weight | 1 kg |
label.lb_description
- Socket height adaptor in dichromate steel for Ø101.6mm sockets.
- In case of sockets sinking into soft soil or sockets installed too deep, this adaptor compensates height differences by sitting inside the socket.
- Adjustable height from 10mm to 100mm.
Height adjustment from 10 to 100mm |
Precise height adjustment thanks to screw thread |
5mm thick plates to ensure optimal support and durability |
