S12598

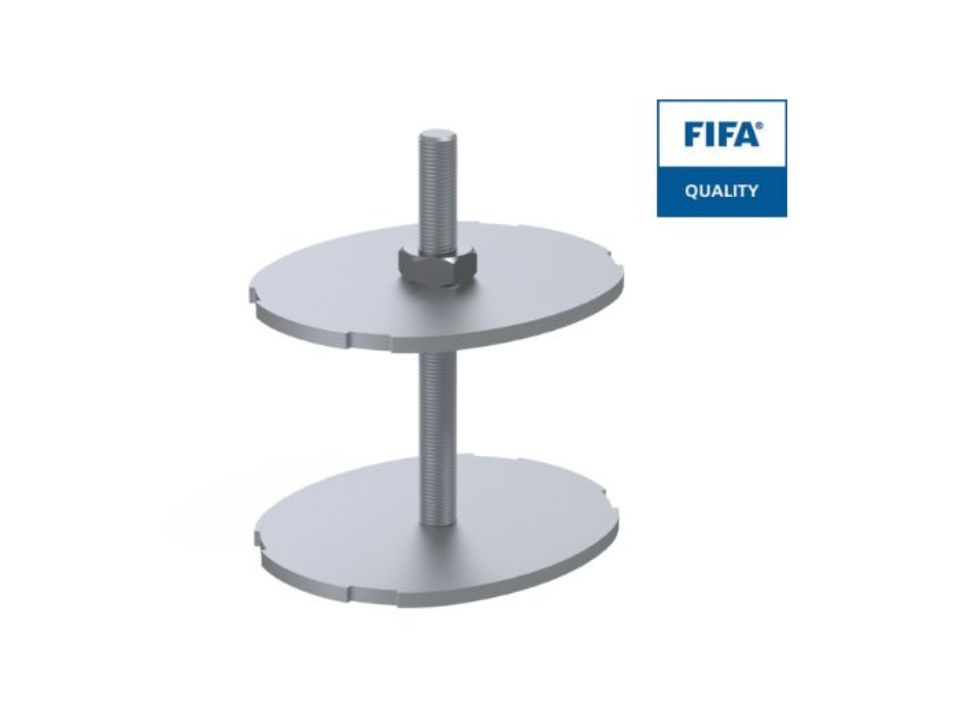

Height regulator for 120x100mm socket

Height regulator for 120x100 socket. Special height regulator design to allows adjusting the effective depth and compensate possible sag from the sockets.

button.bt_loginAccess

label.lb_specifications

Materialdichromate steel
Cross-section typeElliptical
Cross-section dimension120x100mm
Height130mm
NoteFor 120x100mm sockets
Accessory typePost/Goal accessories

label.lb_description

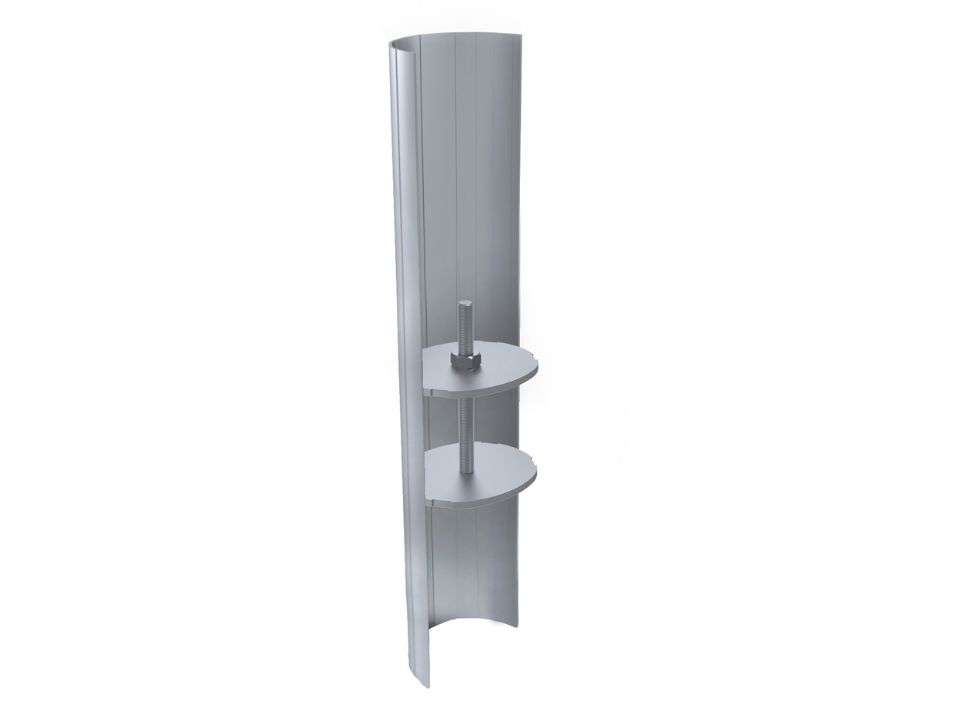

- Socket height adaptor in dichromate steel for 120x100mm sockets.

- In case of sockets sinking into soft soil or sockets installed too deep, this adaptor compensates height differences by sitting inside the socket.

- Adjustable height from 10mm to 100mm.

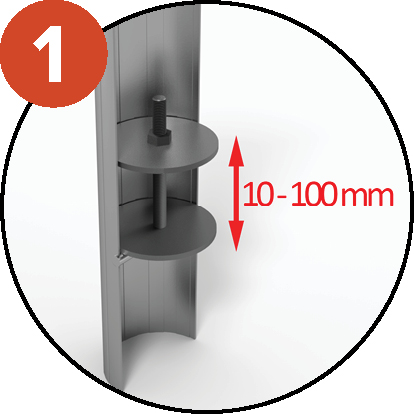

Height adjustment from 10 to 100mm

Height adjustment from 10 to 100mm

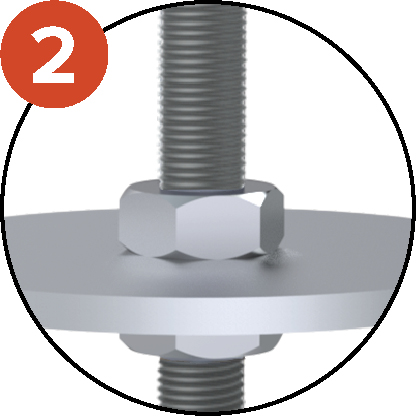

Precise height adjustment thanks to screw thread

Precise height adjustment thanks to screw thread

5mm thick plates to ensure optimal support and durability

5mm thick plates to ensure optimal support and durability
