1612000

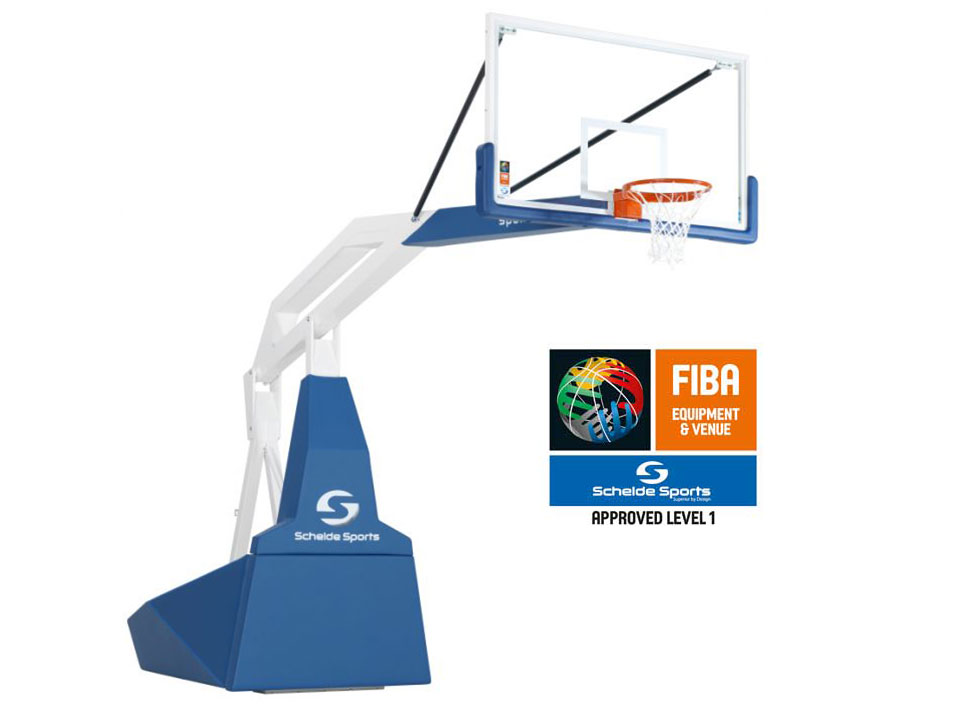

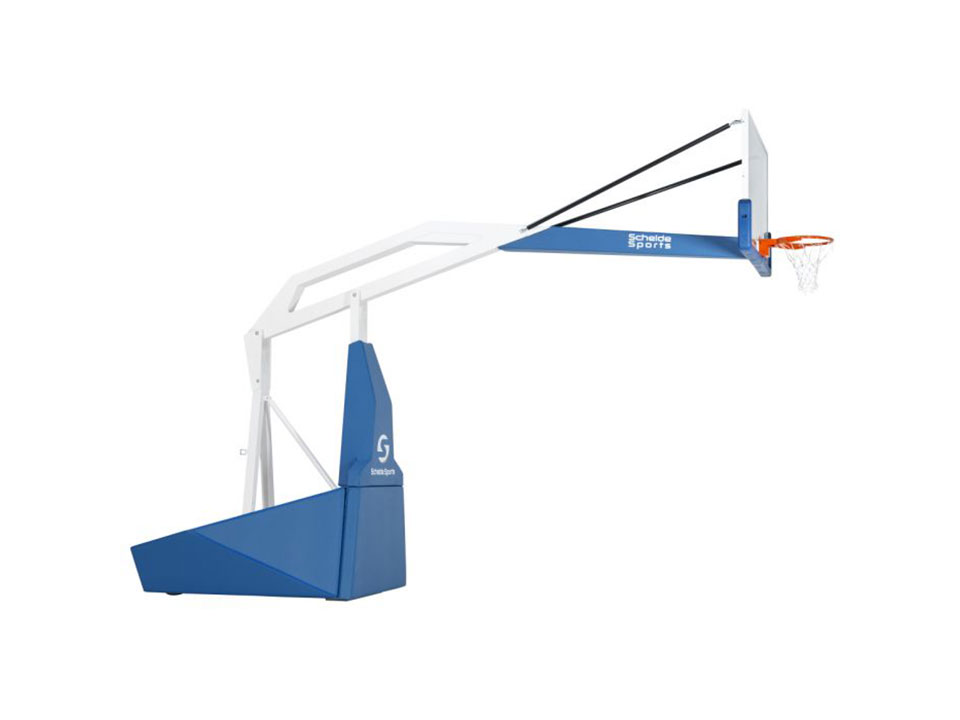

FIBA level 1 - Competition basketball goal. Projection 3.25m

Portable folding goal 2 playing positions. Ring height 3.05m or 2.6m
Projection 3.25m. Anchor system included

button.bt_loginAccess

label.lb_specifications

Ring height3.05m/2.6m
Projection3.25m
Length5.22m
Width1.2m
Height2.1m
Weight1558kg
MaterialSteel
ColorWhite

label.lb_description

Projection: 325 cm.
Positioning: Lifting and lowering by use of SAM system (Spring Assisted Mechanism): easy, safe and low-maintenance. Fine tuning of the ring height for perfect adjustment in game position.
Stability: Patented DSF system (Dynamic Sub Frame): when raising the unit, the base frame automatically lowers onto the floor. This ensures the basketball backstop is immediately in the right game position and the weight is evenly distributed.
Backstop: Strong and stable, white coated high-tensile strength steel frame. Lifetime maintenance free pivot bearings, 100% enclosed counter weights.
Wheels: 2 triple swivel wheels in the front and 2 triple fixed wheels in the rear for optimal weight distribution, all with bearings for great mobility.

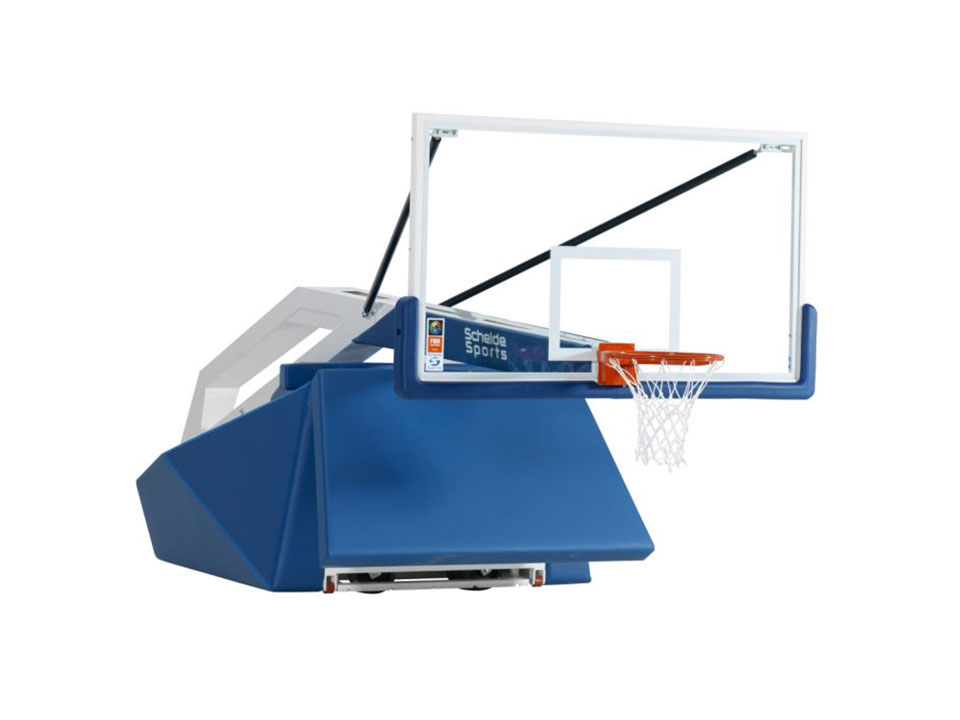

Backboard: Patented dunk-proof 12 mm glass with a full-perimeter steel frame and cut-out for the ring.
Ring: Pro-Action 180° multi-directional, top competition breakaway dunk ring, with concealed net attachments.
Net: Sturdy nylon Anti-Whip basketball net, 6 mm.
Padding: Impact area padding on both the front and sides of the base frame. Standard colour Schelde blue. Backboard protection padding is made of high density PU foam.
Optional: paddings can be personalized. Contact us for further information.

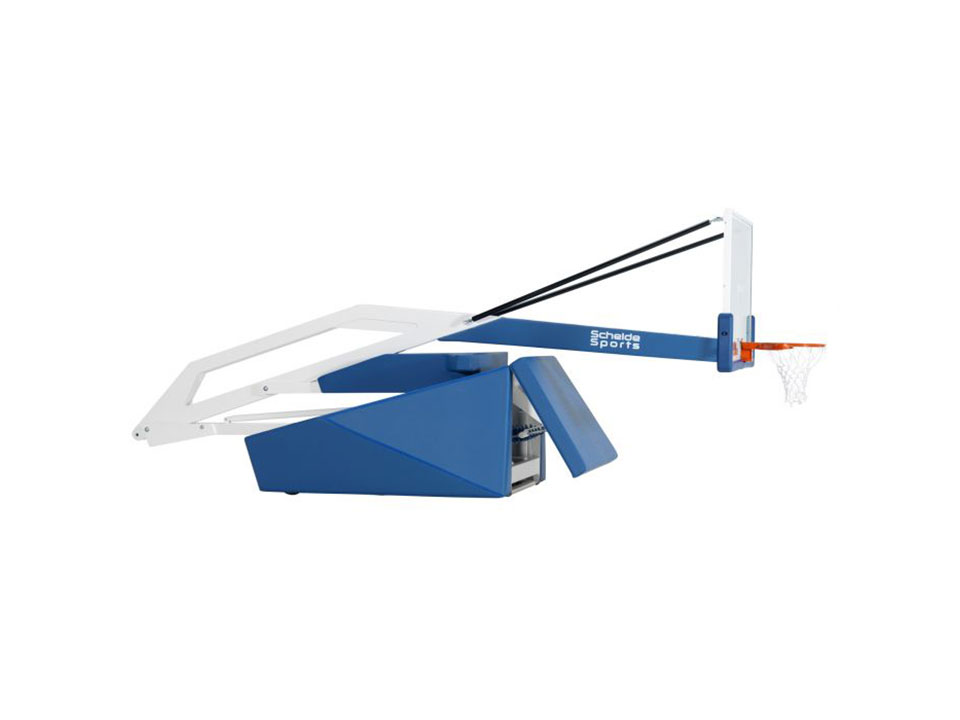

Dimensions: Storage position (lxwxh) ca 5,22x1,90x2,10 cm Automatic beam lock in storage position.Playing position (lxwxh) ca 585x190x395 cm. Automatic snap lock on telescope in playing position.
Transport: Equipped with openings for a forklift truck for transport over longer distances
Anchored: Floor hook at the rear of the frame. 2 positioning pins for quick and precise installation on the court.
Floor connector set included: for both PU floors and suspended floors.
Weight : 1445 kg
Standard: in accordance with EN-1270.
FIBA level: FIBA Level 1 approved.


180° multi-directional ring breakaway

180° multi-directional ring breakaway

Patented dunk-proof 12mm glass backboard

Patented dunk-proof 12mm
glass backboard

2 triple swivel wheels in the front and 2 triple fixed wheels in the rear to avoid floor damage

2 triple swivel wheels in the front
and 2 triple fixed wheels in the rear
to avoid floor damage

Easy to lift and lower by use of the Spring Assisted Mechanism

Easy to lift and lower by use of the
Spring Assisted Mechanism
