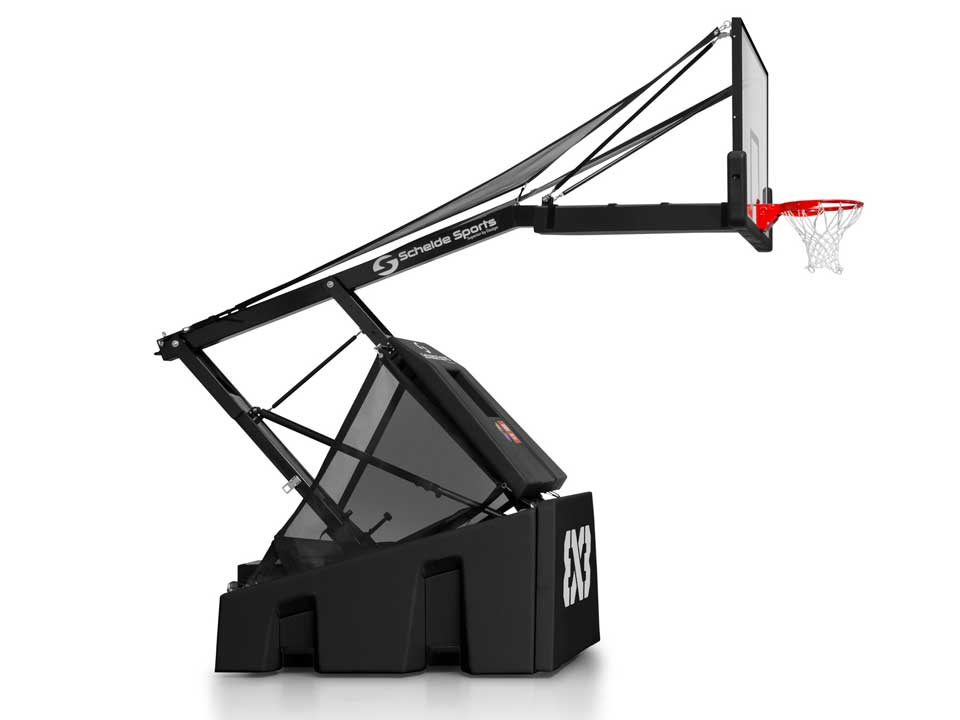

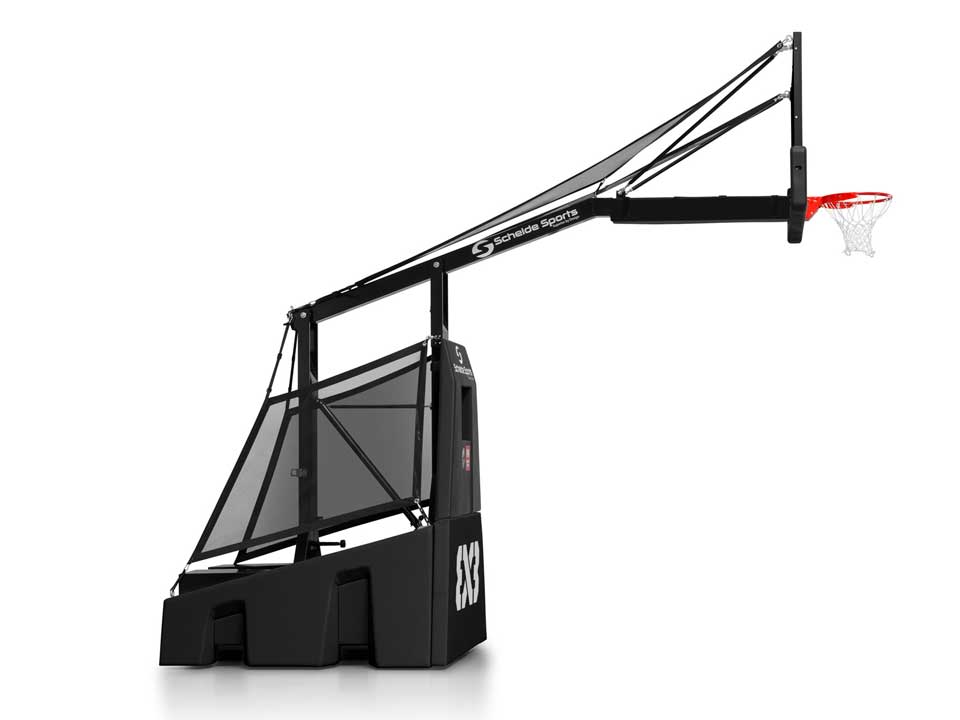

FIBA level 3 - 3x3 outdoor competition basketball goal. Projection 2.25m

Official 3x3 World Tour basketball backstop 3X3 portable folding goal. 2 playing positions. Ring height 3.05m or 2.6m.
Projection 2.25m. 100% freestanding, no floor anchoring required.

button.bt_loginAccess

label.lb_specifications

Ring height3.05m/2.6m
Projection2.25m
Width1.55m
Length4.15m
Weight1.9m
Height2.1m
MaterialSteel
ColorBlack

label.lb_description

Projection: 225 cm.
Positioning: Lifting and lowering by use of SAM system (Spring Assisted Mechanism): easy, safe and low-maintenance.
Stability: APF system (Automatic Pedestal Feet): when raising the unit, the feet automatically reach lower onto the ground, immediately stabilising the backstop and setting it in the right game position.
Backstop: Strong and stable, matte black coated high-tensile strength steel frame.
Lifetime maintenance free pivot bearings, 100% enclosed counter weights.
Wheels: 2 double swivel wheels in the front and 2 triple fixed wheels at in the rear for optimal weight distribution, all with bearings for great mobility.
Backboard: Patented dunk-proof 12 mm glass with a full-perimeter steel frame and cut-out for the ring. Steel frame coated matte black.
Ring: Pro-Action 180° multi-directional, top competition breakaway dunk ring, with extra safe net fixing system.
Net: Sturdy nylon Anti-Whip basketball net, 6 mm.
Padding: Impact area padding on both the front and sides of the base frame. Standard colour matte black. Backboard protection padding is made of high density PU foam. Urban look and feel.
  Optional: paddings can be personalized. Contact us for further information.

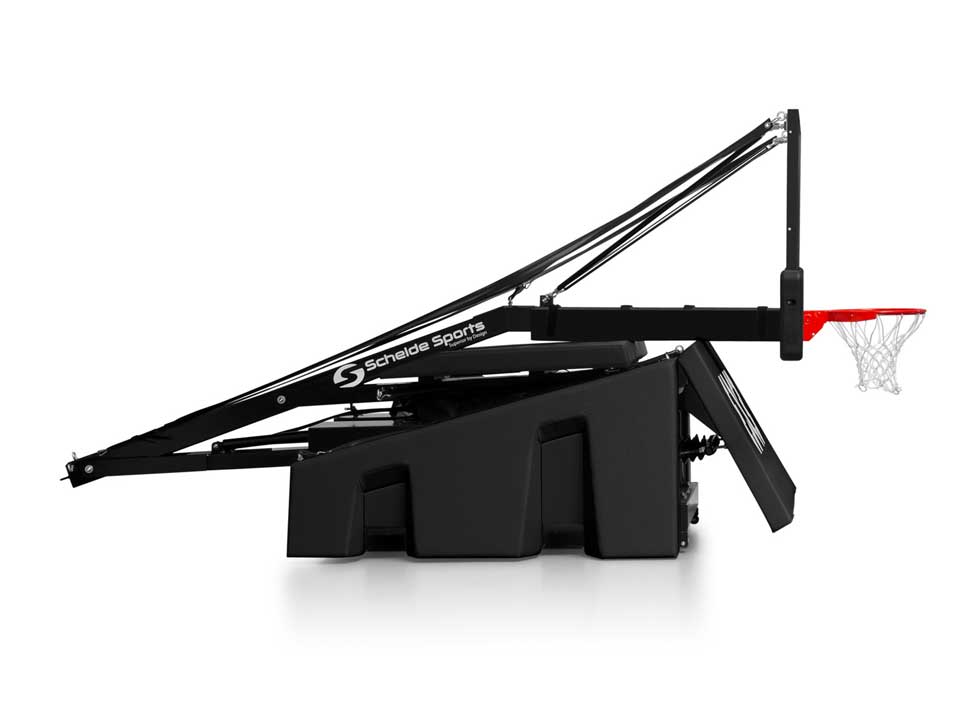

Dimensions: Storage position (lxwxh) ca 415x1,90x2,06 cm Automatic beam lock in storage position.
Playing position (lxwxh) ca 478x190x395 cm. Automatic snap lock on telescope in playing position
Transport: Equipped with openings for a forklift truck for transport over longer distances.
Very convenient for loading and offloading backstop from truck at events.
Anchoring: Additional ballast weight in base, avoiding the need for floor anchors
Standard: in accordance with EN-1270.
FIBA level: FIBA endorsed for all FIBA 3x3 World Tour events and all FIBA 3x3 World Championships; FIBA approved Level 3


Optional:

- Black banners for SAM 3x3 (2203710)
- 12”shotclock for 3x3 backstop (2203700)



180° multi-directional ring breakaway

180° multi-directional ring
breakaway

Patented dunk-proof 12mm glass backboard

Patented dunk-proof 12mm
glass backboard

2 double swivel wheels in the front and 2 triple fixed wheels at in the rear to avoid floor damage

2 double swivel wheels in the front
and 2 triple fixed wheels at in the
rear to avoid floor damage

Easy to lift and lower by use of the Spring Assisted Mechanism and Automatic Pedestal Feet system

Easy to lift and lower by use of the
Spring Assisted Mechanism and
Automatic Pedestal Feet system
